Product Information
Size:
700C
Colour:
Carbon

Delivery Information

This product isn’t currently available for online ordering.

Please contact us on 01727 832020 to confirm availability.

Select & Buy

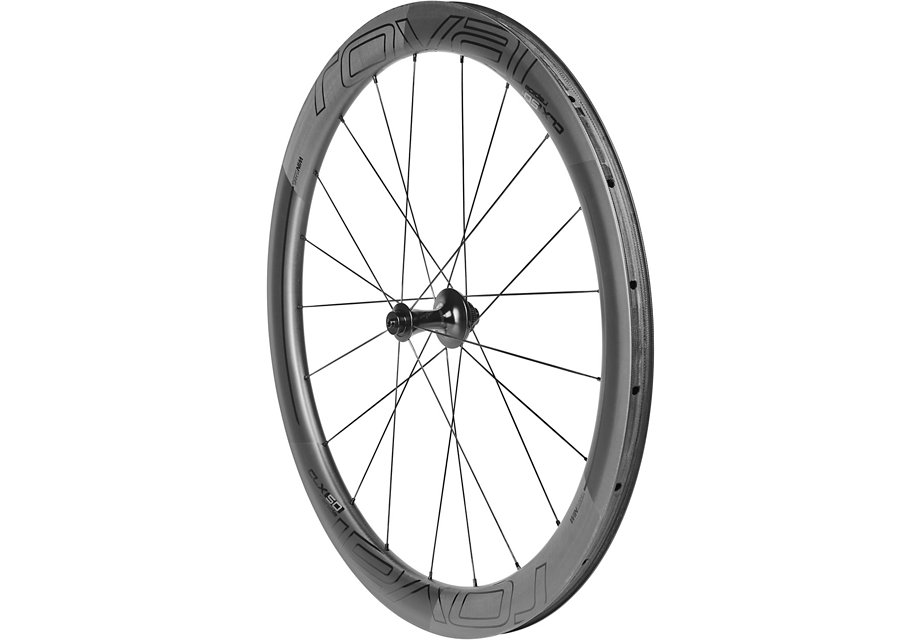

Roval Wheel Clx 50 Disc Front 700C Carbon
Roval Wheel Clx 50 Disc Front 700C Carbon
MPN: 30017-8401

Out of stock

£750.00

Description

When Specialized set out to create the CLX 50 Disc, they had clear goals in mind—create wheels that are 45 to 55mm deep, 2Bliss Ready, aerodynamically optimized, ultra-wide, and around 1400 grams. This meant that they'd have to borrow some weight savings techniques that they developed for the CLX 32, while taking aero guidance from the CLX 64, if Specialized were going to create what they like to call “the unicorn wheel." Specialized implemented every lightweight trick in the book without sacrificing anything to durability. And from there, performed a variety of studies on different wheel depths, deciding that meeting strict weight and stiffness targets would be a big gamble with something too deep, which is where 50mm was born. After the depth was determined, they jumped headlong into Computational Fluid Dynamics computer modeling to arrive at various rim shapes that could make the CLX 50 as fast as possible. It took a while, but they narrowed the rim shape down to three contenders that were then CNC machined into rims, built into wheels, and put into their Wind Tunnel. In the tunnel, they tested every wheel, there's and the competition's, with a 24C (measuring ~26mm wide) S-Works Turbo tyre inflated to 100 PSI, as tyres can drastically affect performance. Testing wheels by themselves, not on a bike, is often seen as malpractice, but in years of experience, the numbers show that the deltas between bike and wheel, and wheel alone, to be consistent. After finding the most optimised rim shape that supported svelte weight requirements, Specialized opted to lace the rims to their Aero Flange (AF) hub with DT Swiss 240 internals, which features the legendary CeramicSpeed bearings and a 12x100mm thru-axle, via 16 DT Swiss Aerolite spokes. Now it was time for final testing validation. The result? A 50mm-deep, 1415-gram clincher wheelset that's not only ~100 grams lighter than the competition’s similar depth wheel, but is also measurably faster in every conceivable test than every wheel in its category.

  • Rim Type: Carbon clincher, tubeless-ready
  • Rim Material: Carbon
  • Braking Surface: Disc brake only
  • Rim Depth: 50mm
  • Rim Width: 20.7mm internal, 29.4mm external
  • Spoke Pattern: Two-cross/Radial (2:1)
  • Spoke Count: 21
  • Spoke Type: DT Swiss Aerolite T-head
  • Nipple Type: DT Swiss Pro Lock hexagonal
  • Front Hub: Roval AFD1, Centerlock, CeramicSpeed bearings, QR or 12mm thru-axle end cap
  • Assembly Method: Hand-built
  • Extras: Roval padded wheelbag, Roval steel QR, Roval tubeless plugs and tubeless valve,12mm thru-axle & QR end caps
  • Weight: 645g
